How to Upgrade System Manually: SuperBox USB Firmware
Upgrading your SuperBox system manually via USB is the definitive recovery method when automatic over-the-air (OTA) updates fail, network errors halt installation, or corrupted system cache causes app launch errors. By placing an official firmware ZIP package onto a FAT32-formatted USB flash drive (8GB to 64GB) and using the built-in System Update > Local Update tool, you can cleanly restore, unbrick, or upgrade any SuperBox console (S8, S7, S6, or legacy S5/S4) in just 5 to 10 minutes without complex technical tools.
- Core Requirement: A reliable USB 2.0 or USB 3.0 drive strictly formatted to FAT32 with the official model-matched firmware ZIP placed in the root directory.
- Quick Execution: Insert the USB into the SuperBox high-speed USB 3.0 port > Open APPS > System Update > Local Update > Select ZIP file > Confirm installation.
- Critical Safety Rule: Never disconnect electrical power or remove the USB drive during the flashing sequence to prevent bootloader corruption.
This technical walkthrough provides the verified step-by-step flashing procedure, hardware compatibility requirements, and essential pre-upgrade safety protocols to ensure a flawless manual update.
Why You Need to Upgrade Your SuperBox System Manually?
You need to upgrade your SuperBox system manually when automatic over-the-air updates fail to download, when local system cache corruption prevents new patches from installing, or when you need to recover a device experiencing application launch errors. SuperBox consoles feature a built-in recovery updater that reads compressed operating system packages directly from an external storage drive.
Manual firmware installation offers several distinct advantages in specific maintenance scenarios:
- Resolves over-the-air server timeout errors caused by temporary internet service provider routing bottlenecks or restrictive firewall configurations.
- Restores corrupted Android TV core files without requiring complex terminal commands or third-party software flash tools.
- Delivers major operating system upgrades when a box has been disconnected from network power for multiple months.
- Enables a clean factory-level reinstallation that wipes persistent background cache errors and refreshes application compatibility.
Step-by-Step Procedure: Manual Firmware Installation via USB Drive
Executing a manual firmware upgrade requires an external flash drive formatted to the standard File Allocation Table architecture. The entire update process takes between five and ten minutes to execute.
Follow this verified hardware sequence to perform a manual system update on your SuperBox:
- Insert a reliable USB 2.0 or USB 3.0 flash drive with a capacity between 8GB and 64GB into your computer and format it to the FAT32 file system.
- Download the official firmware ZIP archive designed specifically for your exact SuperBox model from the verified manufacturer support repository.
- Copy the compressed ZIP file directly into the root directory of your USB drive without unzipping or modifying its folder structure.

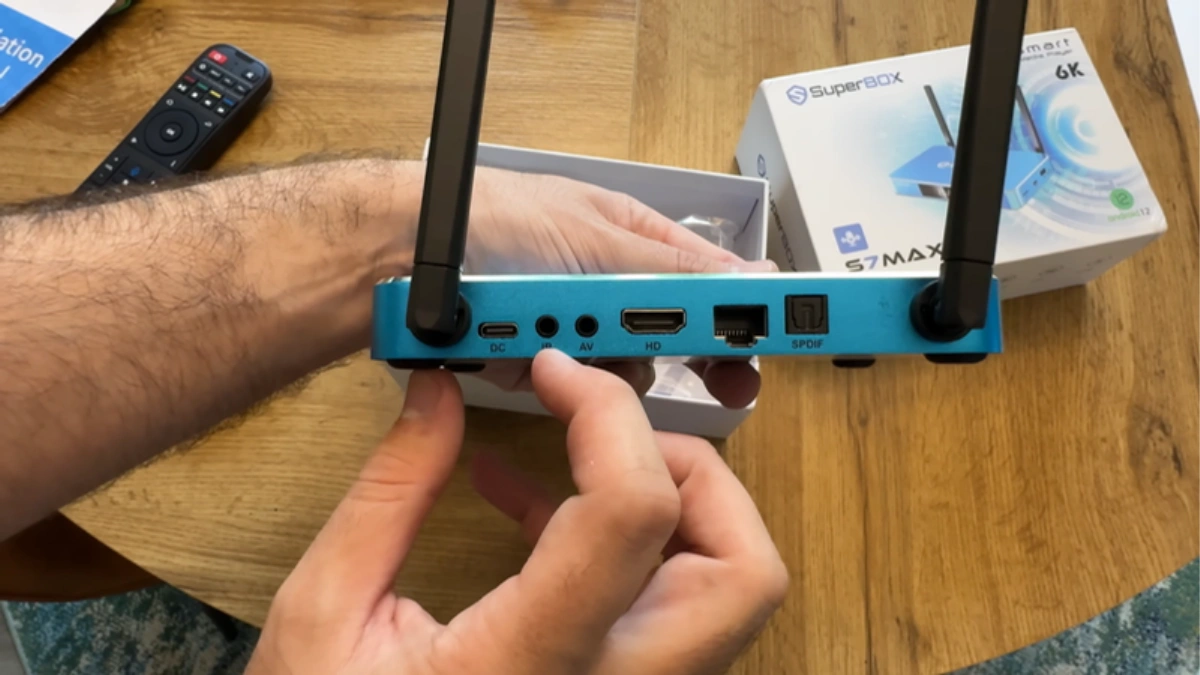

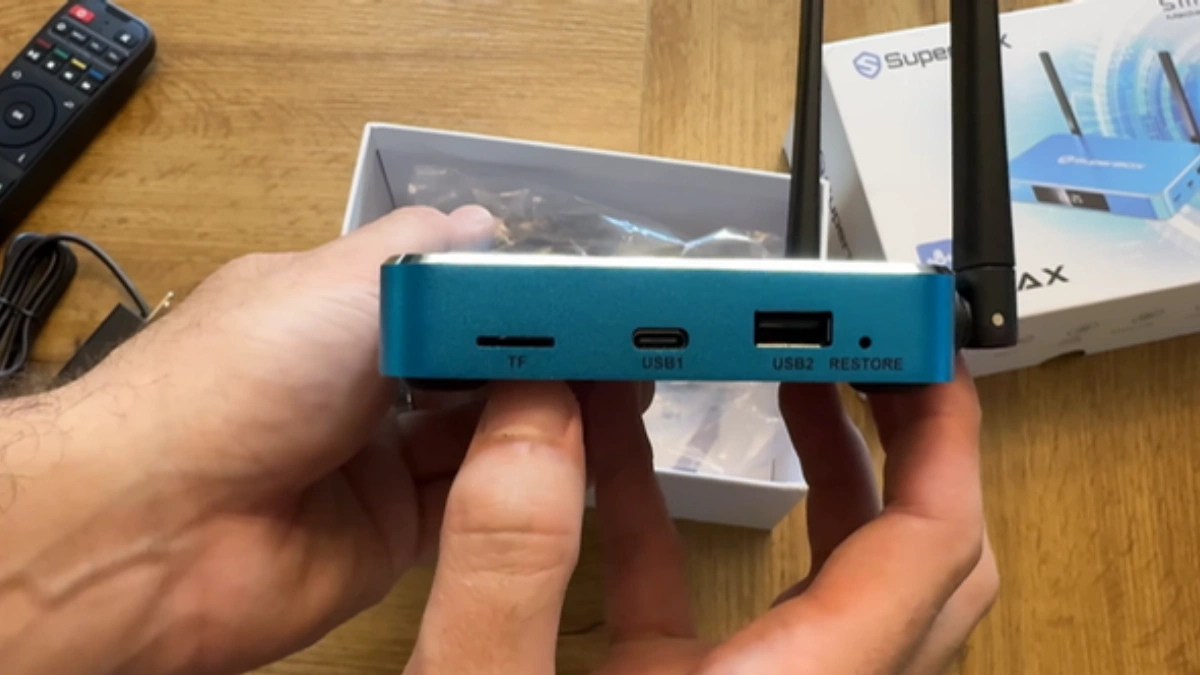

- Safely eject the USB drive from your computer and plug it into the high-speed USB 3.0 port on the side or rear panel of your SuperBox.
- Power on your SuperBox, open the APPS launcher from your home screen, and click on the System Update application.
- Select the Local Update option, browse to the ZIP archive located on your connected USB drive, check the Wipe Data option if performing a full system refresh, and confirm the installation.
Never disconnect the electrical power supply or remove the USB drive while the system progress bar is flashing firmware files to prevent permanent bootloader corruption.
Over-The-Air (OTA) Updates vs. Manual USB Firmware Flashing Comparison
Understanding the operational differences between standard wireless updates and local USB installations helps you choose the correct maintenance path for your device.
| Update Attribute | Automatic Over-The-Air (OTA) Update | Manual USB Firmware Flash (Local Update) |
|---|---|---|
| Execution Method | Direct wireless download through network | Sideloaded via FAT32 USB flash drive |
| Network Dependency | High-speed, stable broadband required | Completely offline execution after file download |
| User Technical Effort | 1-click on-screen confirmation | File formatting and manual package selection |
| System Recovery Ability | Cannot rescue unbootable or crashing firmware | Capable of reviving consoles stuck on launch screens |
| Storage Drive Required | Internal box flash storage only | External 8GB to 64GB USB storage drive |
| Average Installation Time | 3 to 5 minutes depending on internet speed | 5 to 10 minutes for full package installation |
Hardware Compatibility and Storage Requirements Matrix
Each SuperBox generation utilizes specific chipset architectures and Android operating system builds that require matched firmware binaries.
| Console Model | Operating System Build | Compatible USB Format | Recommended USB Port | Expected Update Duration |
|---|---|---|---|---|
| SuperBox S8 Pro / S8 Max / S8 Ultra | Android 12 OS | FAT32 | USB 3.0 Port | 6 to 8 minutes |
| SuperBox S7 Pro / S7 Max / S7 Ultra | Android 12 OS | FAT32 | USB 3.0 Port | 5 to 7 minutes |
| SuperBox S6 Pro / S6 Max / S6 Ultra / Supreme | Android 12 OS | FAT32 | USB 3.0 Port | 7 to 9 minutes |
| SuperBox S5 / S4 Legacy | Android 9.0 Pie | FAT32 | USB 2.0 Port | 8 to 10 minutes |
Using a high-quality USB 3.0 solid-state flash drive on the SuperBox S8 series ensures fast data throughput and prevents write timeout errors during the system flash.
Essential Pre-Upgrade Safety Checklist to Prevent System Errors
Before starting a manual operating system flash, running through a safety checklist prevents hardware damage and ensures a seamless update cycle.
Review these diagnostic checkpoints prior to initiating your installation:
- Confirm that your USB flash drive is strictly formatted to FAT32, as NTFS or exFAT drives may not be detected inside the recovery bootloader.
- Verify that the downloaded ZIP archive file size matches the official release notes and has not been extracted into separate folders.
- Connect your SuperBox power adapter directly to a surge protector to guard against unexpected power interruptions during the flashing process.
- Disconnect all external accessories, including hard drives, webcams, and keyboards, leaving only your target update USB drive inserted.
- Ensure that your television display remains powered on so you can monitor the real-time installation percentage indicator.
Frequently Asked Questions About SuperBox Manual System Upgrades
Will a manual system upgrade delete my installed apps and saved favorites?
If you select the standard Local Update option without checking Wipe Data, your personal settings, network connections, and applications will remain intact. However, if you check the Wipe Data or Wipe Media checkboxes, the installer will perform a complete factory restoration, erasing user data to ensure maximum stability.
What should I do if my SuperBox freezes on the recovery screen during an update?
If the installation progress bar halts for more than twenty minutes, power cycle the console by unplugging the power adapter, wait thirty seconds, and reconnect power. The SuperBox recovery system will automatically attempt to roll back to the previous stable operating system build.
Where can I find verified, official firmware ZIP files for my SuperBox?
Always obtain firmware packages exclusively from authorized retailers like SuperBox TV Box Store or by contacting our 24/7 technical support team via customer@superboxtvboxstore.com or Live Chat. Under our official 1-year warranty policy, installing unverified third-party ROMs or unauthorized firmware modifications will void your warranty protection and may permanently damage system stability.
